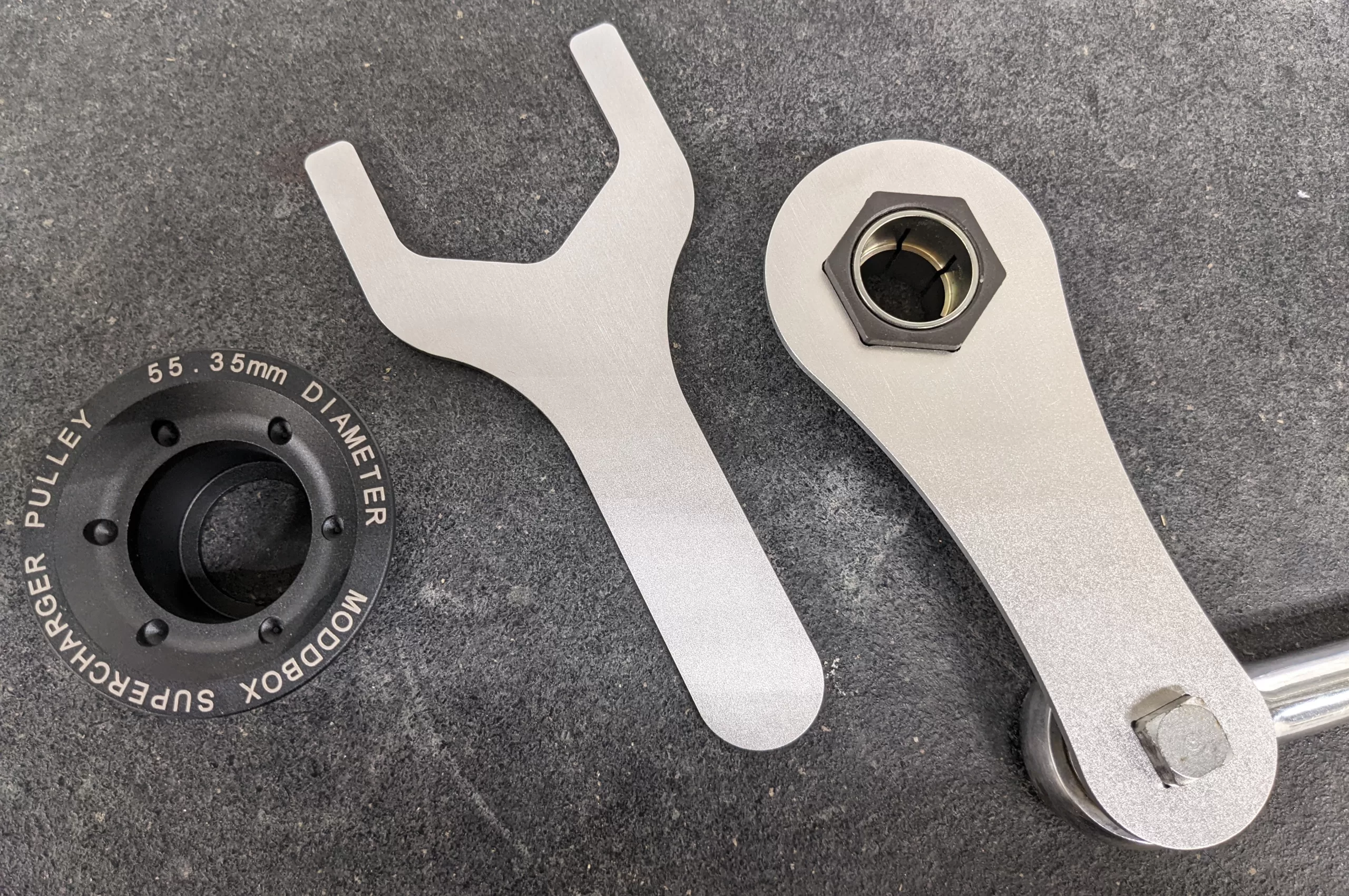

In the Kit:

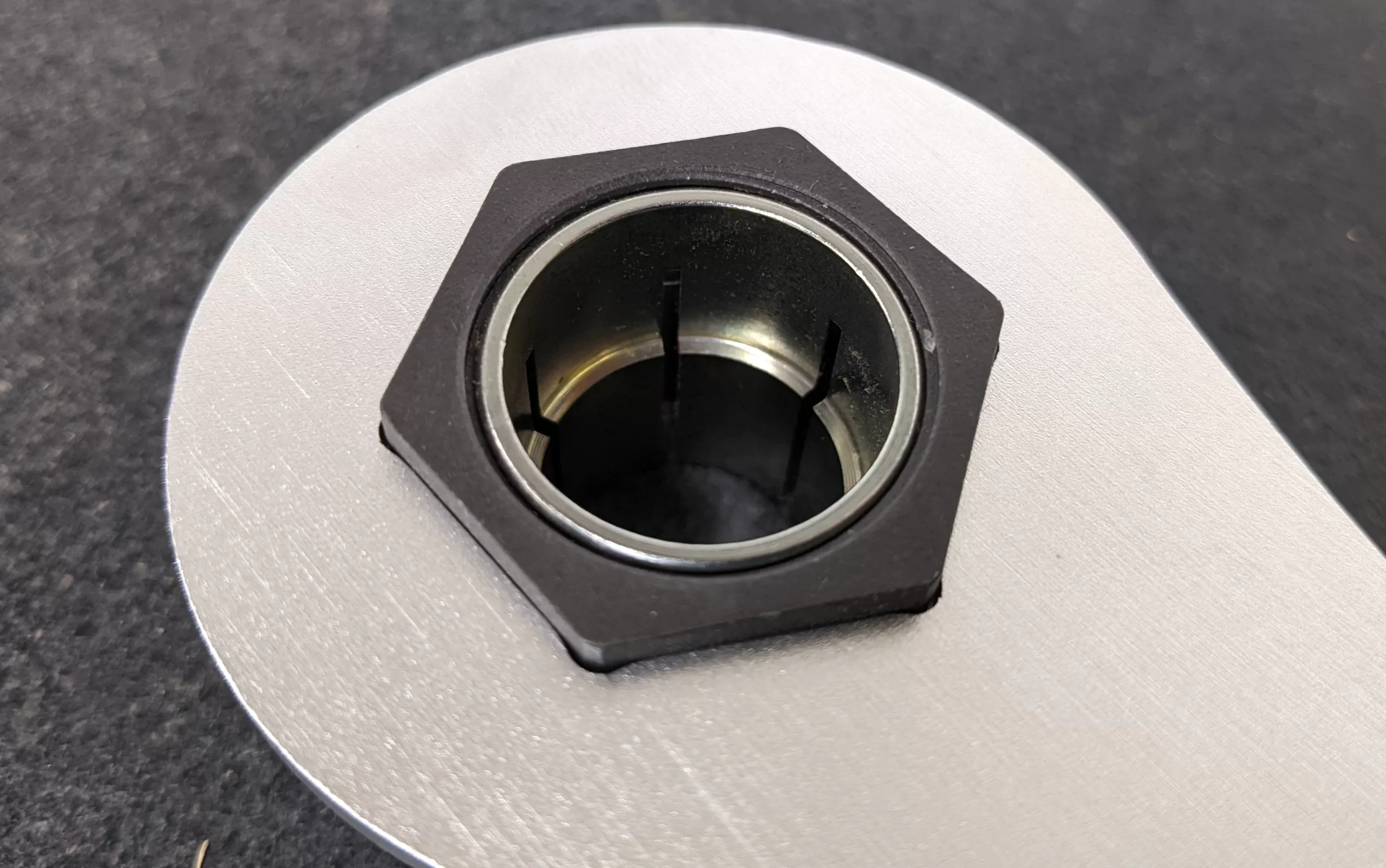

1 – Moddbox Patented Pulley Drive Coupler
1 – Moddbox 54.04 mm* Supercharger Pulley (17.5% Overdrive, makes 18-20psi on stock r52/r53 at sea level)

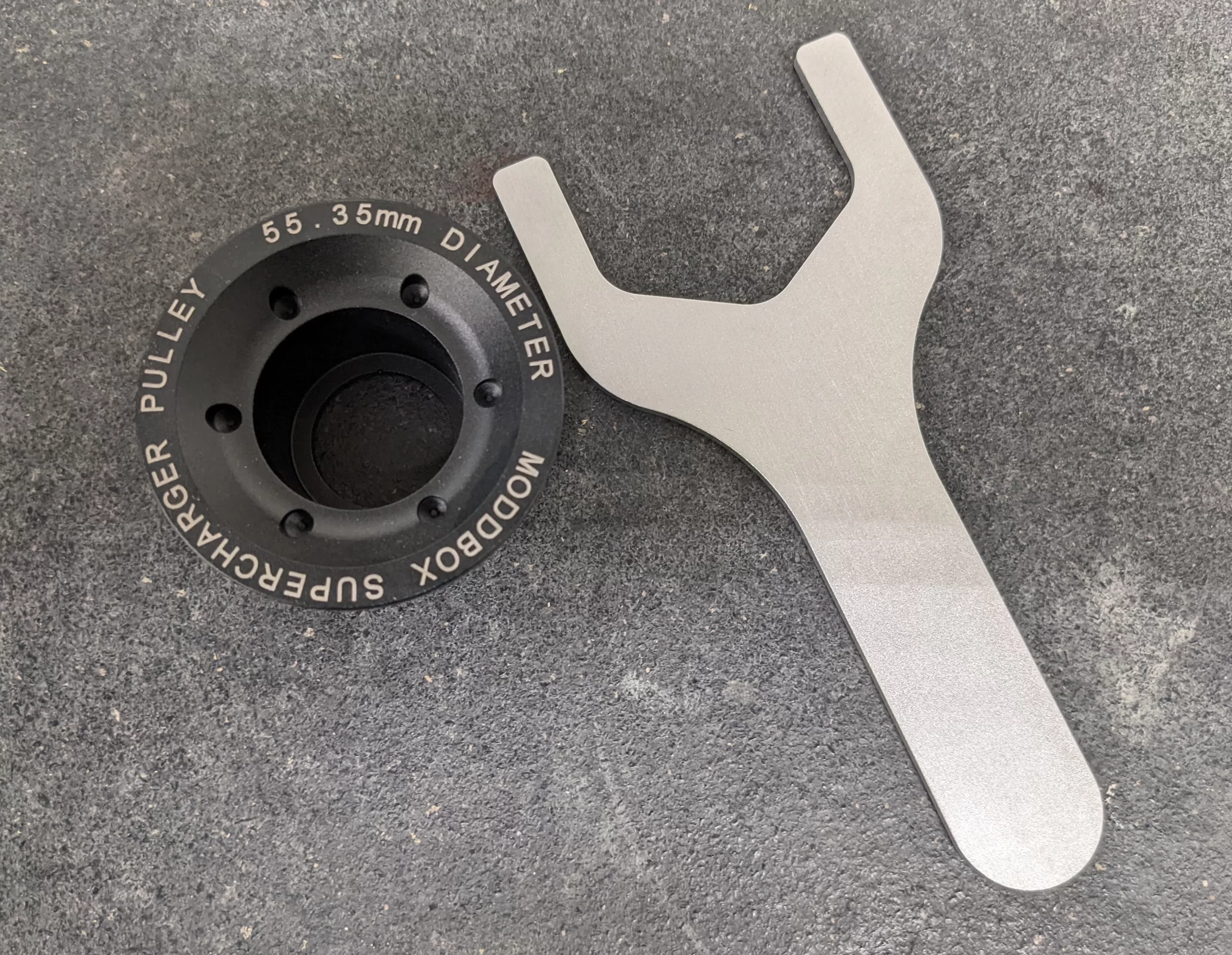

1 – Moddbox 55.35 mm* Supercharger Pulley (15.5% Overdrive, makes 15-17psi on stock r52/r53 at sea level)
1 – Moddbox Pulley Wrench
1 – Moddbox Coupler Torque Wrench/Torque Multiplier
*For Moddbox recommended applications, refer to the Supercharger Pulley Installation Instructions.
The Moddbox Supercharger Pulley Kit includes two CNC precision cut, bead blasted, anodized, and laser engraved Moddbox Pulleys (the 54.04 and 55.35 mm diameters). These pulleys are precision machined from T6061 aluminum which conforms to QQ-A-200/8 and ASTM B211 ensuring a high strength-to-weight ratio as well as increased corrosion resistance and durability. The pulleys come with the Moddbox Patented Pulley Drive Coupler which is engineered and manufactured to provide a reliable high-performance product that is easy to install and of the utmost quality and durability. The coupler design utilizes a mechanical interference fit with uniform pressure distribution that achieves increased performance over OEM shrink or press fit designs due to the increased clamping force. Additionally, the Moddbox coupler provides a true zero backlash shaft-to-hub connection with none of the operational drawbacks of keyways, splines, or other problems common with other OEM designs.
Why Choose Moddbox?
Moddbox is a reputable aftermarket performance company with over a decade in the aftermarket forced induction market. Our team of engineers, machinists, tuners, and drivers (most important) have over a decade of experience designing, testing, and tuning supercharger kits and aftermarket pulleys. With thousands of supercharger kits sold worldwide, we believe the Moddbox Patented Pulley Drive Coupler is the best thing to come to the supercharger industry. Unlike OEM systems or other quick change pulley systems on the market, our Moddbox Patented Pulley Drive Coupler design is developed using state-of-the-art structural FEM analysis, physical laboratory stress testing (extreme heat, cold, and load testing), and over two years of field testing on track, dyno, and street applications.
Why the 54.04 mm and 55.35 mm diameters?
Based on our experience tuning, testing, and pushing the r53 to the limit (also applies to r52), we believe the 54.04 mm and 55.35 mm provide the most reliable high boost options to achieve optimal power and reliability with the Eaton M45. For more information, refer to the Supercharger Pulley Installation Instructions.
