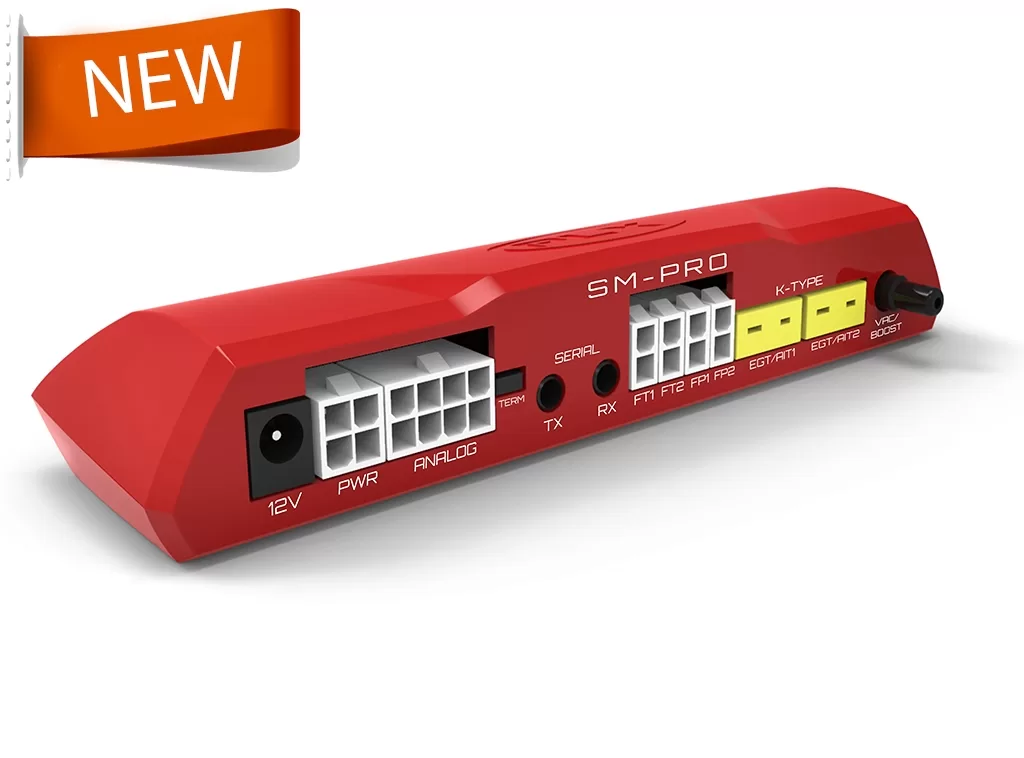

PLX SM-Pro Combined Sensor Module

$219.00

8 in stock (can be backordered)

SKU: PLX897346002085 Category: Tags: , , , , , , ,

Description

From PLX:

SM-Pro is a combined sensor module for accurately measuring Vac/Boost, Exhaust Gas Temperature, Air Intake Temperature, Fluid (Oil/Water) Temperature, and Fluid Pressure.

Includes genuine Honeywell 3Bar Vac/Boost sensor (built-in), wires/connectors for digital interface with DM-6, DM-100/200, MultiGauge Link. Also includes analog outputs for interfacing with 3rd party ECU’s and data loggers.

*Please note, SM-PRO comes with ONLY the Vac/Boost sensor built-in. To measure Fluid Temp, Exhaust Temp, Air Temp, and Fluid Pressure, please purchase the sensors separately and plug them into the module.

The SM-Pro combines the leading industry’s aftermarket sensors into one control module. Out of the box, SM-Pro can measure 3Bar Vac/Boost with the built-in genuine Honeywell sensor. Simply add additional sensors from the accessories section below to obtain Fluid Temp, Exhaust Gas Temp, Air Temp, and Fluid Pressure readings. SM-Pro automatically detects sensors that are connected and streams data via the digital output interface to the DM-6 MultiGauge or MultiGauge Link for display on your Apple/Android smart device. Each sensors is digitally monitored and refreshed at 10Hz (10 times/second) for exceptional accuracy and smoother gauge movement.

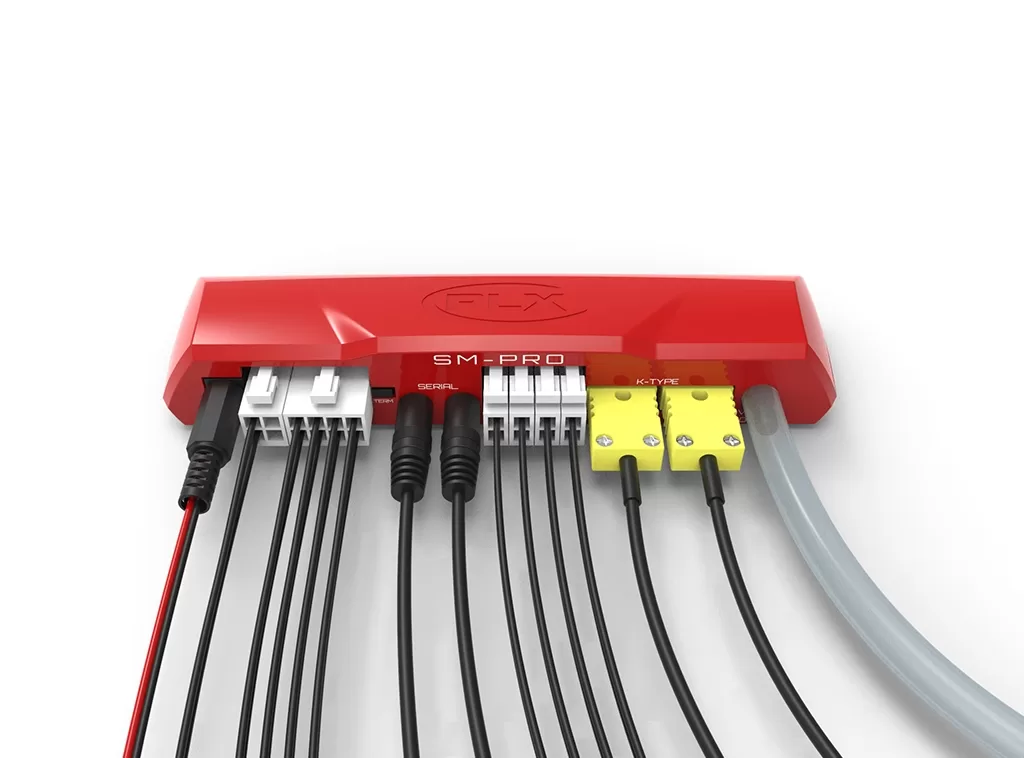

Features

  1. 9-25VDC power from vehicle’s battery
  2. For connecting power to DM-6 MultiGauge and/or MultiGauge Link Smartphone Adapter
  3. Eight 0-5V analog outputs for interface with 3rd party data loggers/ECUs
  4. Termination jumper. Install if it is the end module in digital daisy-chain. Remove if not end module in digital daisy-chain.
  5. Digital input (rx) /output (tx) for digital interface with display modules like DM-6, DM-100/200, MultiGauge Link
  6. Two Fluid Temp inputs for VDO resistive type sensors. Measurement range of 32 – 302 degrees Fahrenheit or 0 – 150 degrees Celsius
  7. Two Fluid Pressure inputs. Measurement range 0 – 150 PSI or 0 – 10.5 kg/cm^2.
  8. Two Air Intake Temp/Exhaust Gas Temp for use with K-Type thermocouple probes. Measurement range is from 32 – 1873 degrees Fahrenheit or 0 – 1023 degrees Celsius for EGT. Measurement range of 32 – 631 degrees Fahrenheit or 0 – 333 degrees Celsius for AIT
  9. One 3 Bar Honeywell Vac/Boost sensor. Measurement range is 30.5 inHg to 30 PSI or 760 mmHg to 2.11 Kg/cm^2.

Included Items:
SM-PRO main unit
Genuine Honeywell 3 BAR Vac/Boost Sensor Built-in
Sensor Module Connect Kit (4ft power wire with 2.1mm connector, 4ft Analog wires, 1ft Serial Cable, 4 Pin connector, 8 Pin connector, 8 Terminals)
Termination jumper
User Manual
*Other sensors sold separately



Prices are in USD.  This product ships from the USA.  US customers are not charged tax.  Canadian customers are not charged tax, but duty and brokerage fee may apply.

Additional information

Weight 1.2 kg
Dimensions 20 × 20 × 15 cm
